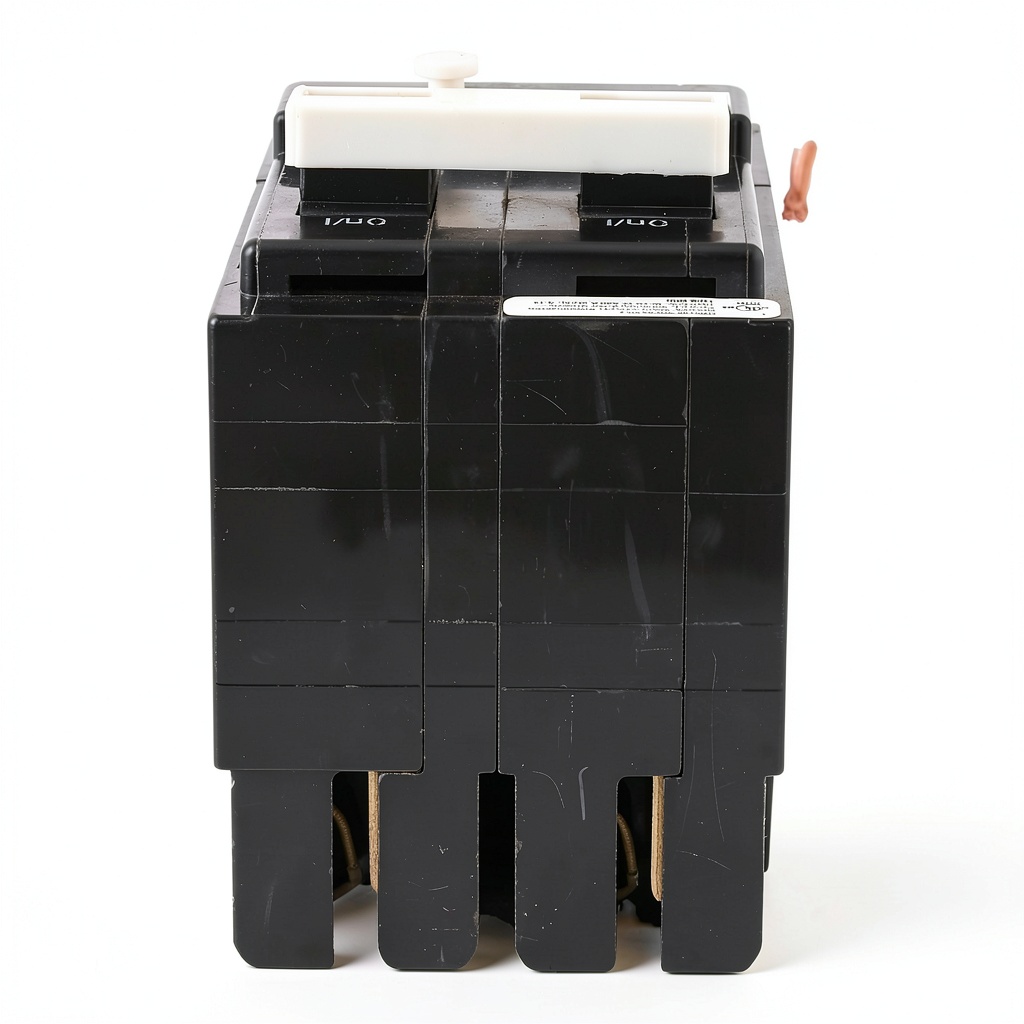

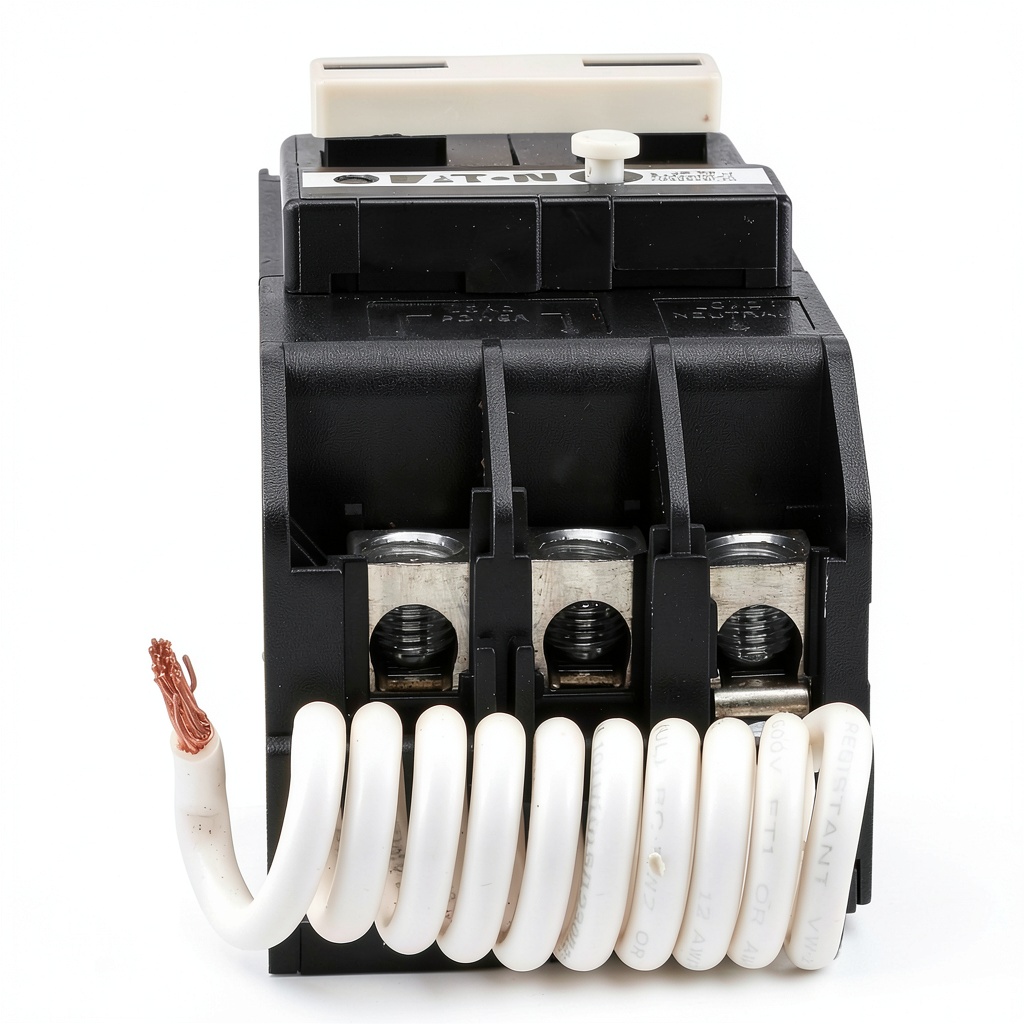

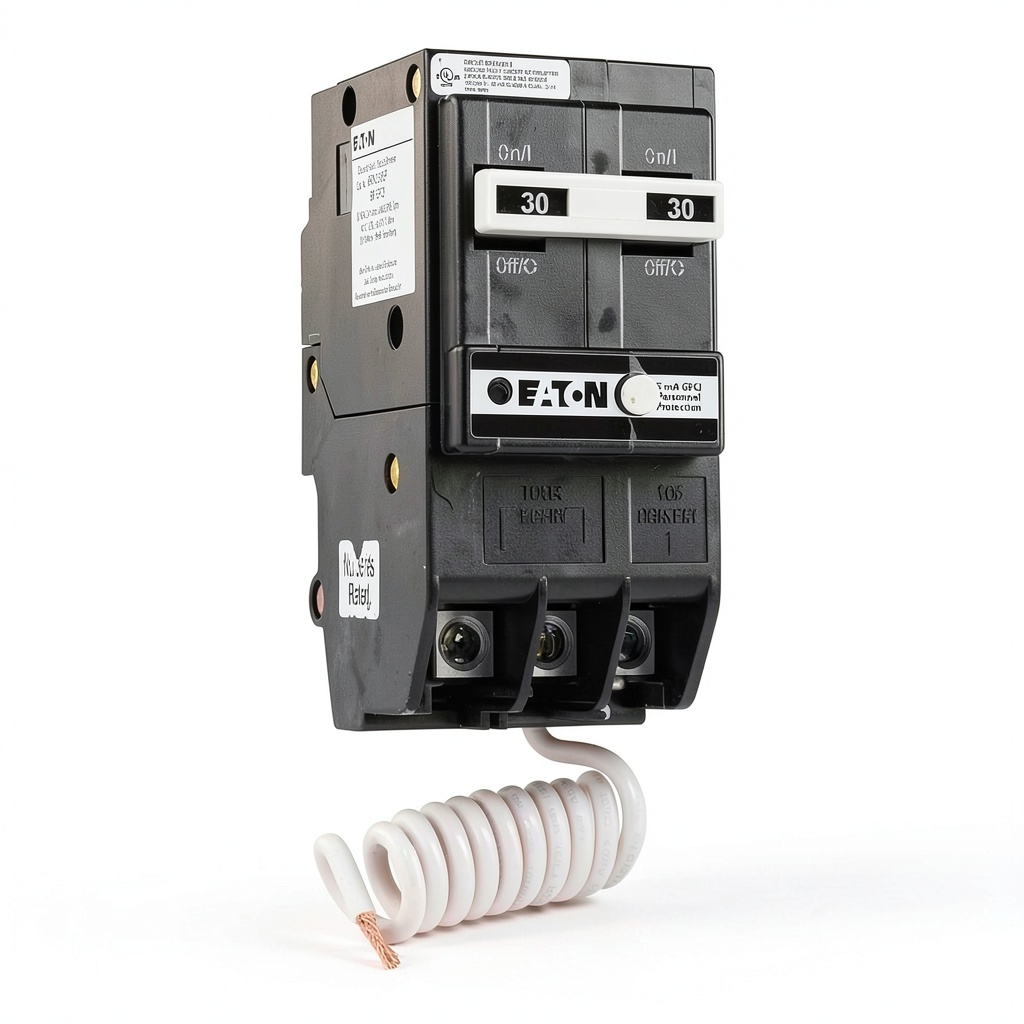

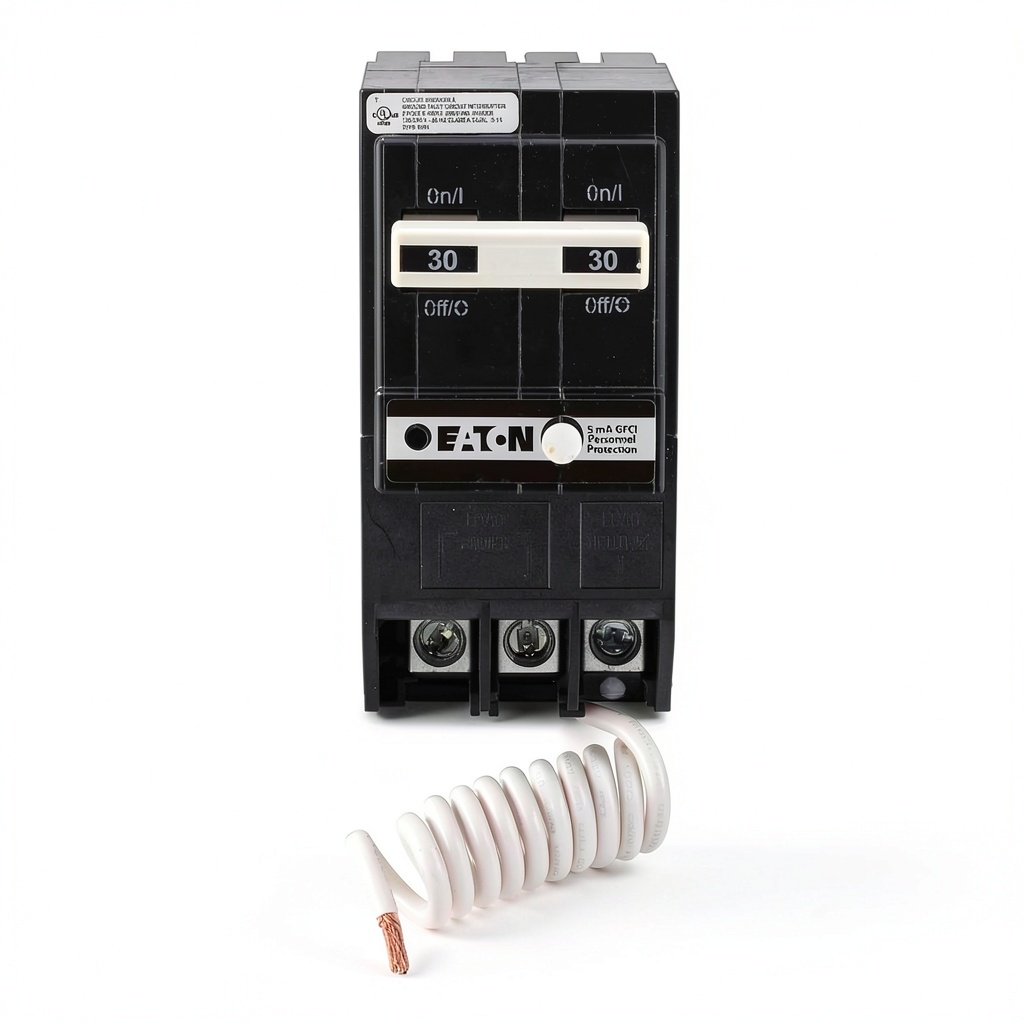

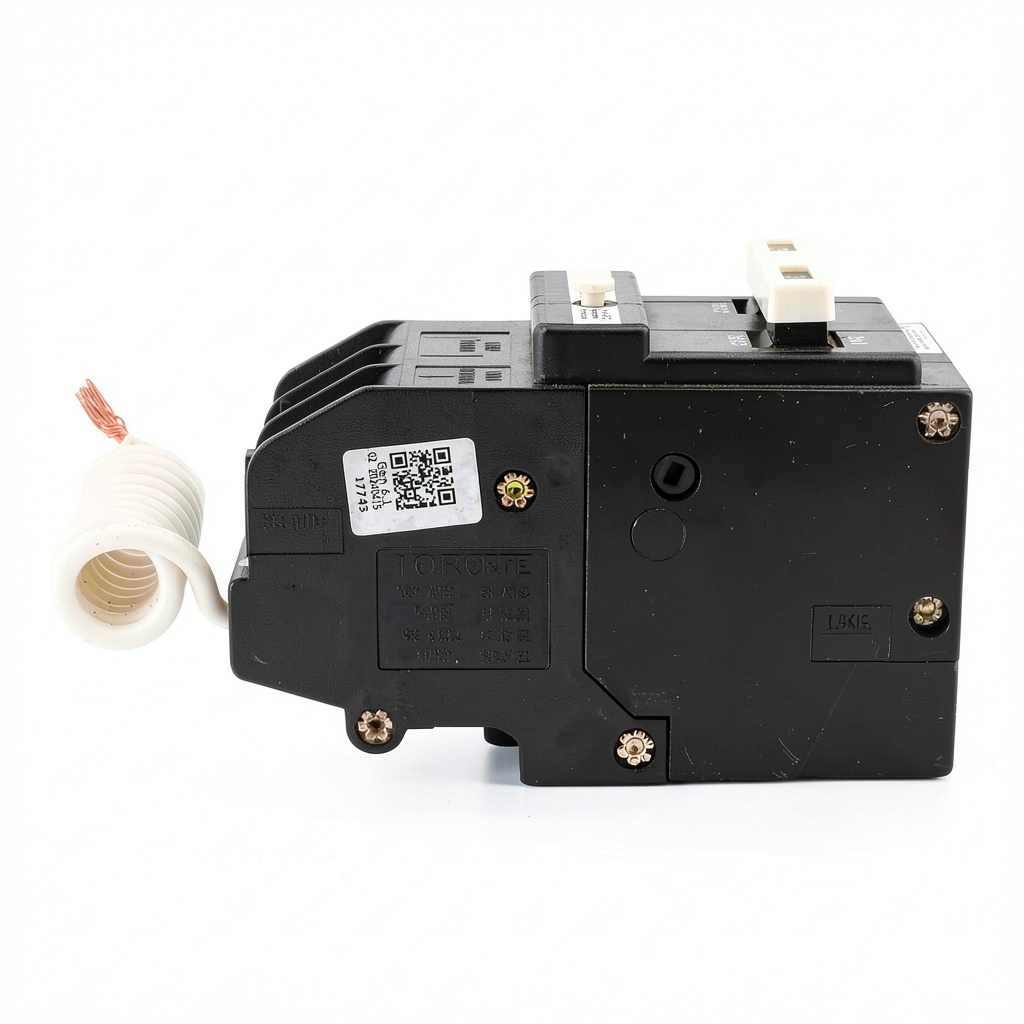

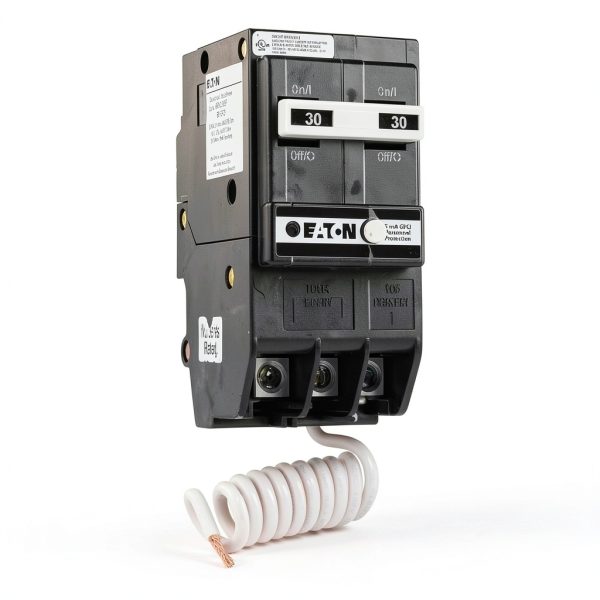

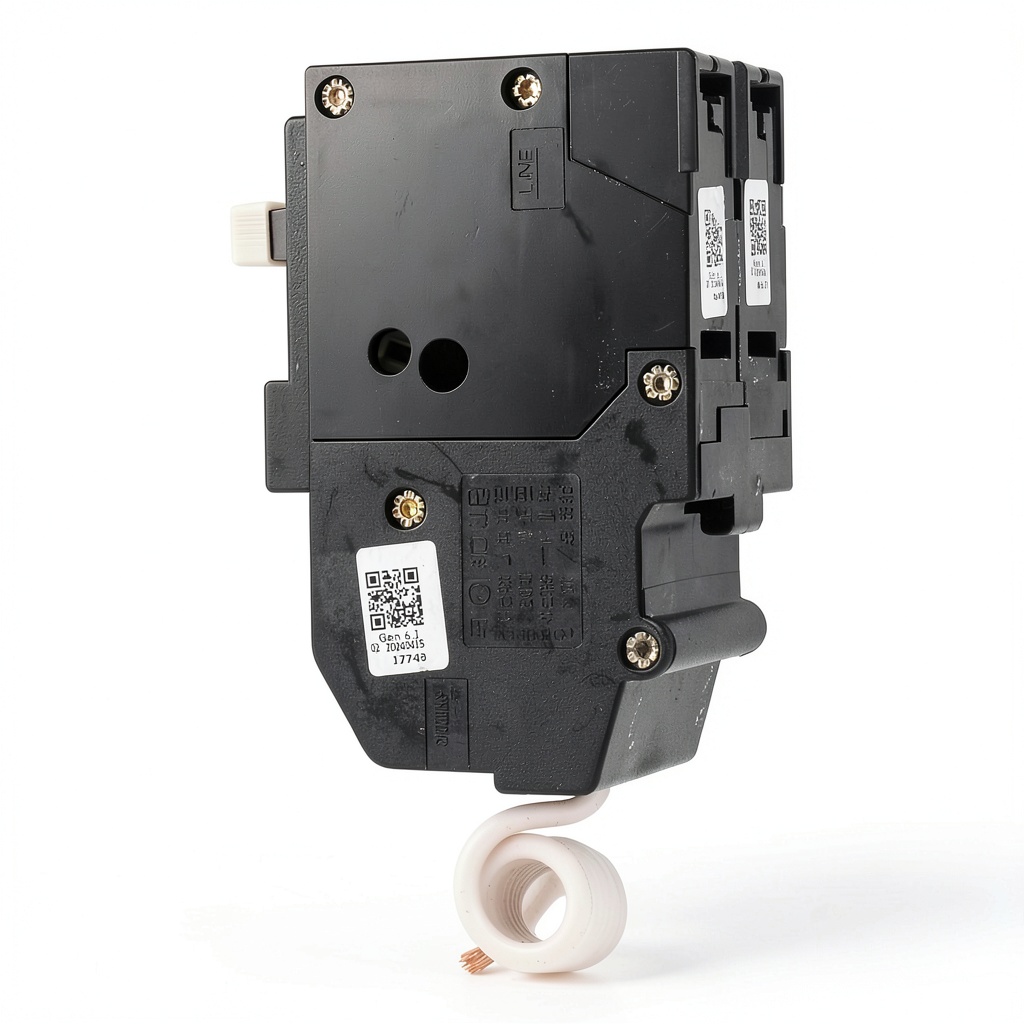

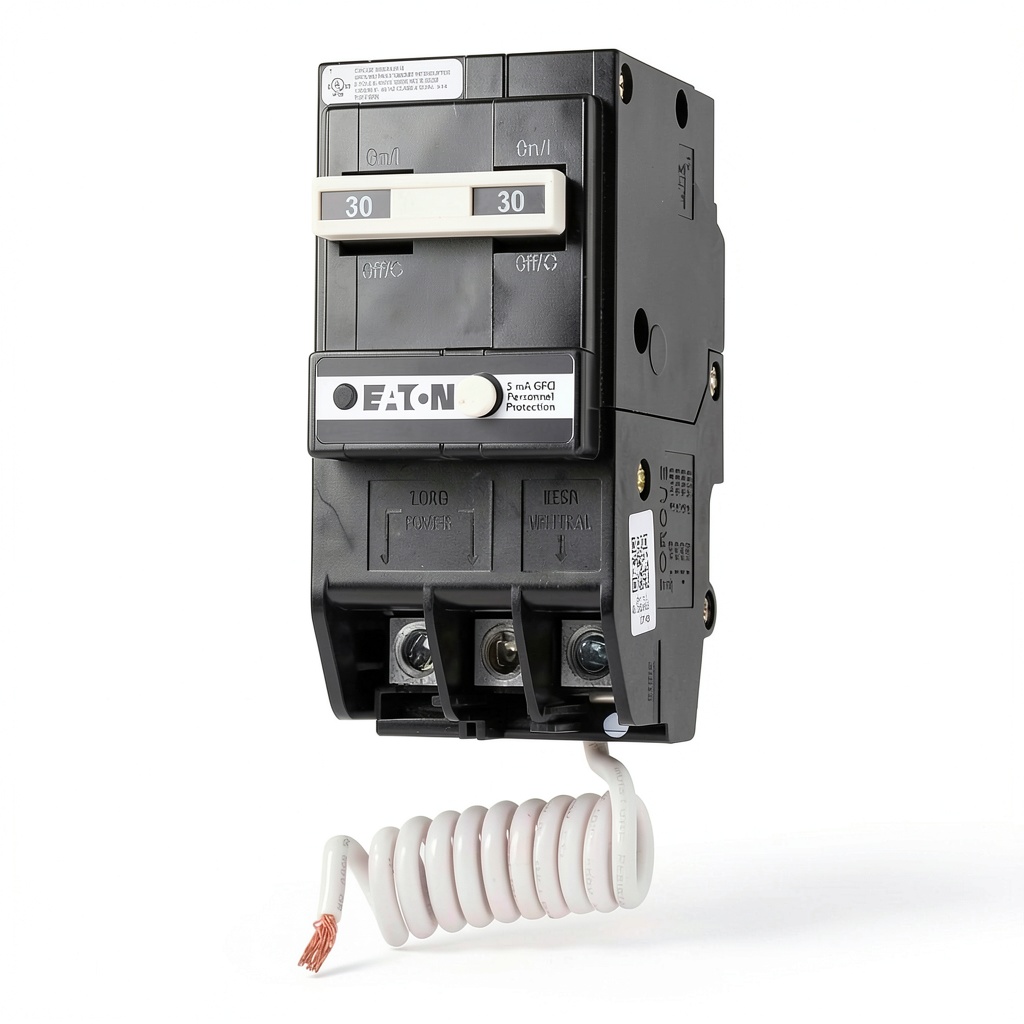

CUTLER HAMMER 30A Pole GFCI Circuit Breaker 120/240V Pigtail UL

Description

Product Overview

The Cutler Hammer BRN230GF is a 30‑amp, double‑pole circuit breaker engineered with built‑in Ground Fault Circuit Interrupter (GFCI) technology. Designed for 120/240 V applications, it provides comprehensive protection against ground‑fault currents, helping to prevent electric shock hazards in both residential and commercial settings. The unit features a pigtail neutral connection, simplifying wiring and ensuring a secure, code‑compliant installation. Constructed from high‑grade, heat‑resistant materials, the breaker meets UL listing requirements, guaranteeing reliability and safety under demanding load conditions.

Measuring 6.22 × 3.54 × 2.32 inches and weighing just 15.2 oz, the BRN230GF fits comfortably within standard load centers and breaker panels. Its compact form factor maximizes panel space while delivering robust performance. The breaker’s internal mechanism utilizes a fast‑acting trip curve, detecting ground‑fault currents as low as 5 mA and disconnecting the circuit within milliseconds. This rapid response helps protect sensitive equipment and reduces the risk of fire.

Cutler Hammer, a trusted name in electrical components, has a long history of delivering products that meet rigorous industry standards. The BRN230GF benefits from the brand’s extensive research and development, incorporating advanced diagnostics and a durable mechanical design that resists wear and corrosion over time. The breaker’s clear labeling and color‑coded terminals aid electricians in quick identification and proper installation, reducing the chance of wiring errors.

In addition to its safety features, the BRN230GF offers convenience for maintenance. The breaker’s snap‑in design allows for easy removal and replacement without the need for specialized tools. Its robust contacts maintain a low resistance connection, ensuring efficient power delivery and minimizing voltage drop across the circuit. Whether used in new construction or retrofits, this breaker provides a reliable solution for protecting outlets, appliances, and lighting circuits that require GFCI protection.

Usage

This GFCI circuit breaker is ideal for protecting outdoor receptacles, wet locations, kitchens, bathrooms, and any area where water exposure is a concern. Install it in a standard residential load center to safeguard outlets that serve appliances such as dishwashers, garbage disposals, and electric vehicle chargers. Its 30‑amp rating supports higher‑capacity circuits, making it suitable for dedicated circuits feeding heavy‑duty equipment while still providing ground‑fault protection.

Commercial electricians also benefit from the BRN230GF when outfitting office buildings, retail spaces, and industrial facilities. The breaker’s ability to handle 120/240 V systems means it can be deployed in three‑phase panels for balanced loads, ensuring consistent protection across multiple phases. Its pigtail neutral simplifies wiring in complex panel configurations, reducing installation time and potential errors.

For DIY homeowners, the breaker’s user‑friendly design and clear markings make it a practical choice for upgrades and renovations. Whether adding GFCI protection to an existing circuit or installing a new dedicated line for a high‑power appliance, the BRN230GF provides peace of mind with its proven safety performance. Always follow local electrical codes and consult a qualified professional when working with high‑voltage equipment.

Why Choose Us

Choosing the Cutler Hammer BRN230GF means selecting a product backed by decades of industry expertise and a commitment to quality. Each breaker undergoes rigorous testing in UL‑certified laboratories, ensuring it meets or exceeds the standards for electrical safety, durability, and performance. This dedication to compliance translates into a product that you can trust to protect lives and property.

Our customer support team is available to assist with technical questions, installation guidance, and warranty claims. We understand that proper installation is critical for safety, so we provide detailed documentation, wiring diagrams, and troubleshooting resources to help electricians and homeowners achieve optimal results. Should you encounter any issues, our responsive service team works quickly to resolve concerns and maintain your confidence in our brand.

In addition to the core product benefits, the BRN230GF offers long‑term value through its robust construction and resistance to wear. The breaker’s internal components are designed to withstand repeated tripping events without degradation, reducing the need for frequent replacements. By investing in a high‑quality GFCI breaker, you minimize downtime and maintenance costs while ensuring continuous protection for your electrical system.

Key Features

• Integrated GFCI technology detects ground‑fault currents as low as 5 mA, providing rapid circuit interruption for enhanced safety.
• 30 A double‑pole rating supports high‑capacity circuits while maintaining reliable performance under load.
• Pigtail neutral simplifies wiring, reducing installation time and minimizing potential connection errors.
• UL listed construction ensures compliance with stringent safety standards for residential and commercial applications.
• Dedicated customer support and comprehensive documentation offer peace of mind and assistance throughout the product lifecycle.

FAQ

What does the GFCI function protect against?

The GFCI monitors the current balance between hot and neutral conductors. If it detects a difference as small as 5 mA, indicating a leakage to ground, it trips the circuit within milliseconds, protecting users from electric shock.

Can this breaker be used in a three‑phase panel?

Yes, the BRN230GF is rated for 120/240 V systems and can be installed in three‑phase panels to protect balanced loads, provided the panel supports double‑pole breakers of the same rating.

Is the pigtail neutral compatible with all panel brands?

The pigtail neutral is a standard 12‑AWG insulated conductor that fits most panel manufacturers. Always verify the terminal size and torque specifications in the panel’s installation guide.

What is the warranty period for this breaker?

Cutler Hammer offers a limited one‑year warranty covering manufacturing defects. Contact our support team with the product serial number and proof of purchase for assistance.

How do I reset the breaker after it trips?

After addressing the fault source, simply flip the breaker handle to the “OFF” position and then back to “ON.” Ensure the circuit is free of ground‑fault conditions before resetting to avoid repeated trips.
